Description

Output:



Rated Output Power: 5,000W

Max. Peak Power: 10,000VA

Load Capacity of Motor: 4HP

Wave Form: Pure Sine Wave

Rated Output Voltage: 110Vac (single phase)

Max. Parallel Capacity: 2 units (up to 10kW split-phase)

Output Mode: Off-grid/Hybrid/On-grid





Solar Input:



Solar Charge Type: MPPT

Max. Solar Array Power: 5,500W

Max. Solar Open Circuit Voltage: 500Vdc



Grid / Generator Input:



Input Voltage Range: 90~140Vac

Bypass Overload Current: 63A



Battery Charging:



Max. Solar Charging Current: 100A

Max. Grid/Generator Charging Current: 40A



General:



Battery Module: SR-EOV05B

Battery Power: 5.12kWh

Rated Voltage: 51.2V

Rated Capacity: 100Ah

Battery Type: LFP (Lithium Iron Phosphate)

Cycling Lifespan: 6000 (80%DOD,0.5C,25°C)

Max. Parallel Capacity: 4 units (up to 20.48kWh)

Dimension: 600*555*130mm

Standard: UN38.3, CE-GPSD, IEC62109, EMC



Features:



Supports Off-grid/Hybrid/On-Grid output

Multiple charge and discharge modes are available

Time-slot function to save on electricity costs

Large LCD screen with real-time data

No matching and commissioning required, ready to install

Plug-and-play, eliminating the clutter of wires

Up to 4 batteries in parallel expand to 20.48kWh

Up to 2 systems in parallel with double storage & output



Additional Information:

Inverter Module

Battery Module

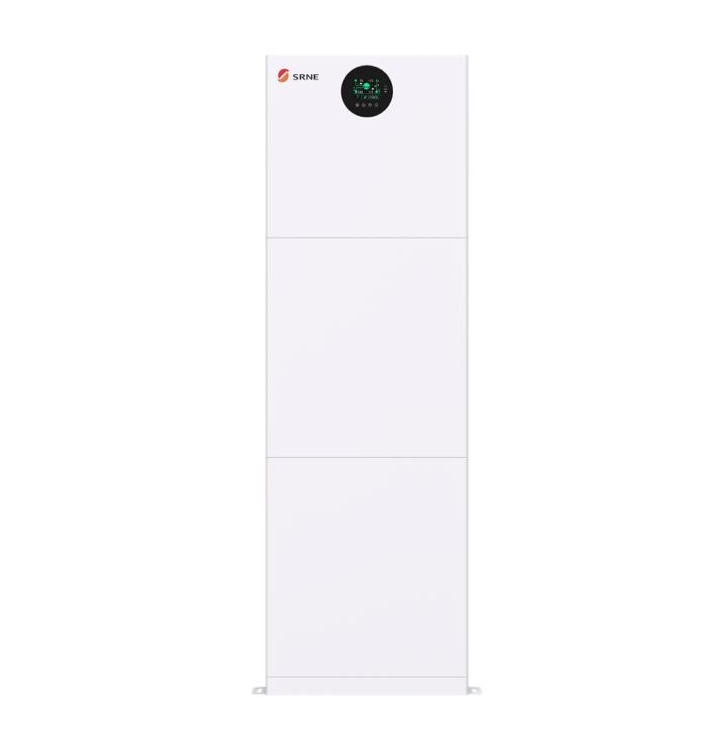

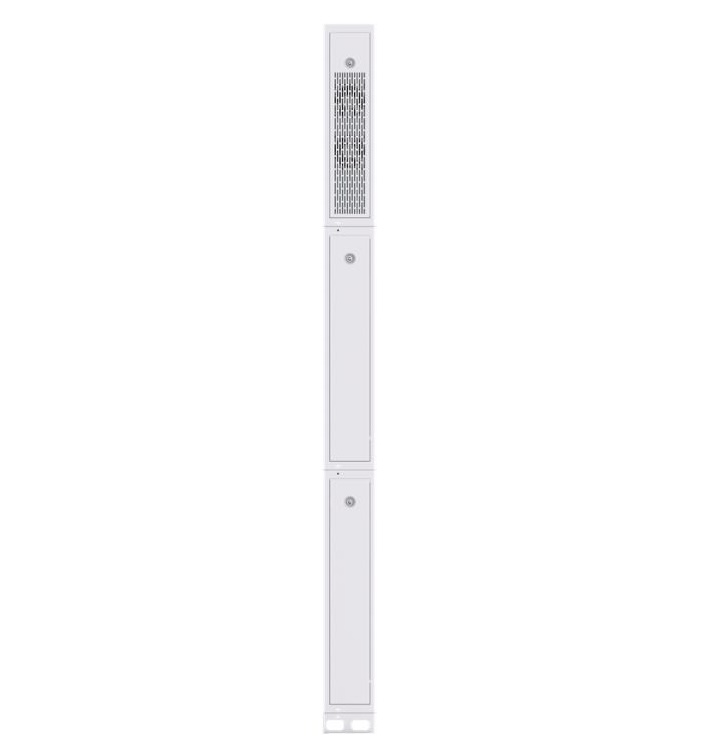

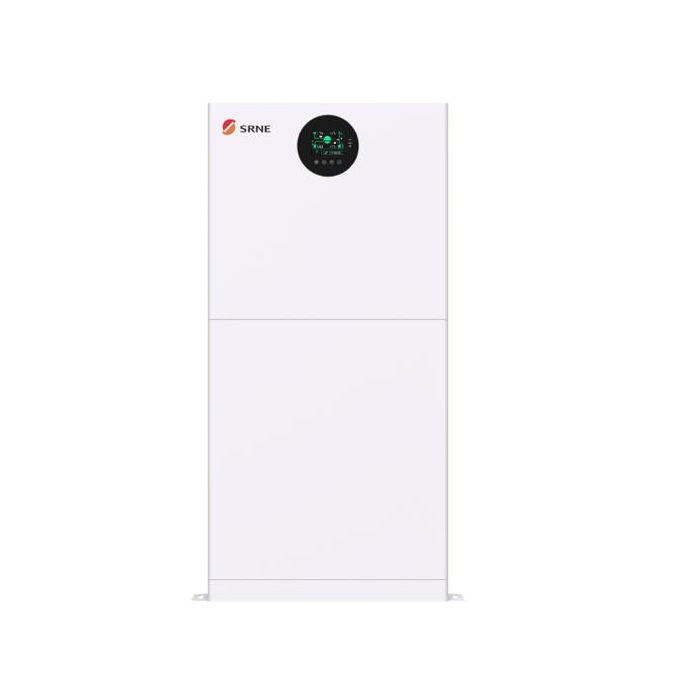

Solar Energy Storage System

Experience the future of energy storage with the EOV Series. Power your life with efficiency, reliability, and sustainability.
