Description

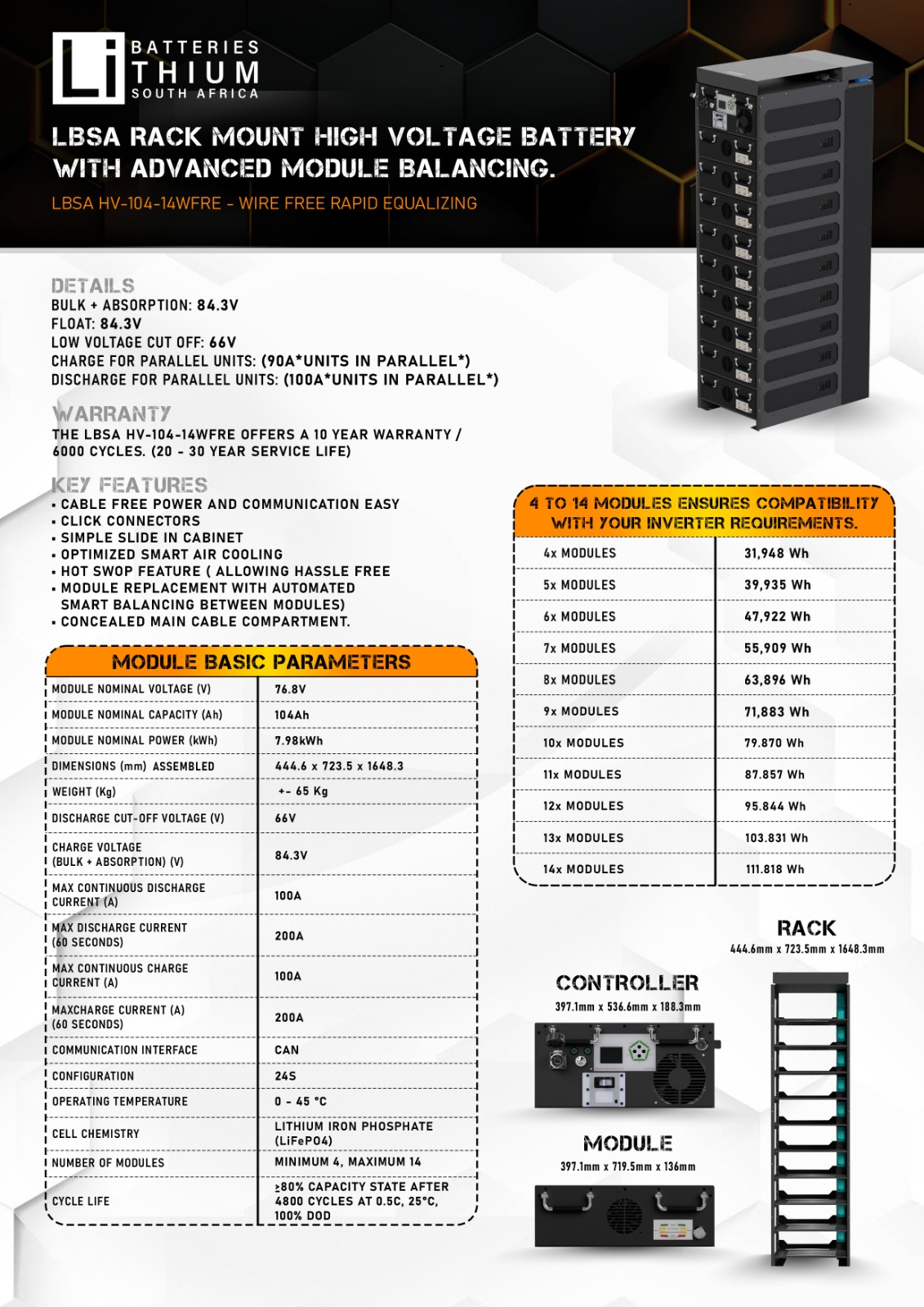

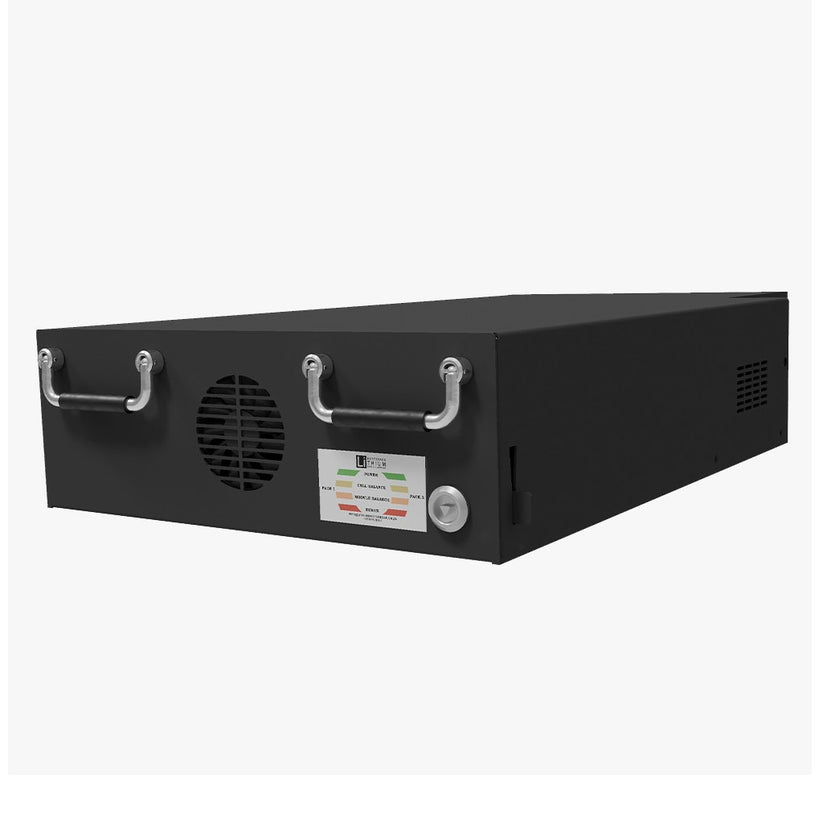

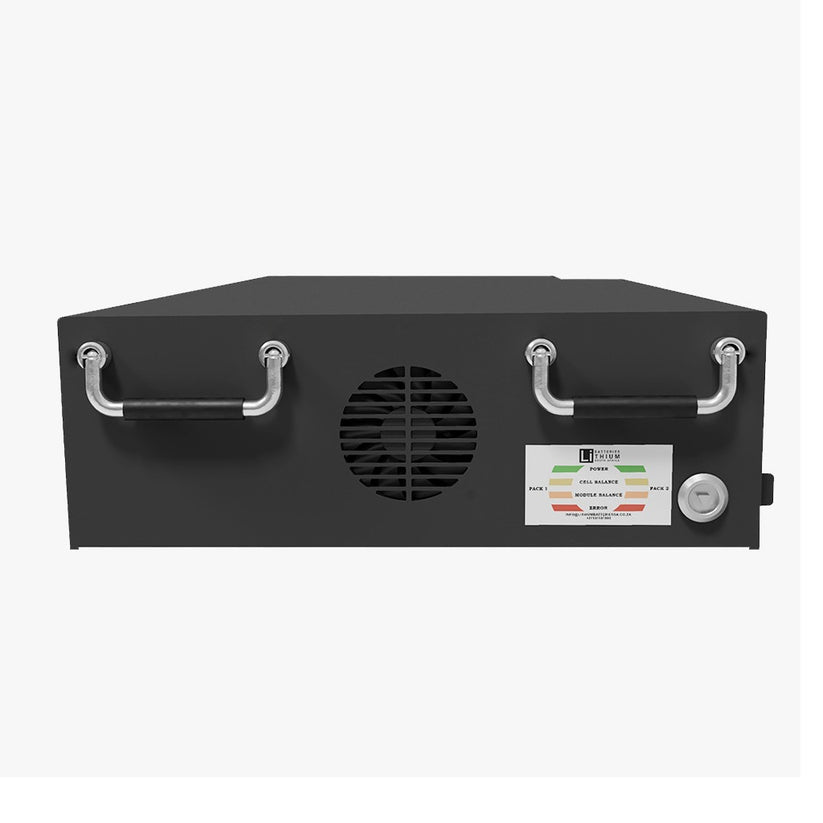

LBSA High Voltage Module 7.99kWh Rack Mount

CONCEALED MAIN CABLE COMPARTMENT

IP67 rated communication and power connections.

COMMUNICATION FAILOVER

If a battery fails, communication continues to work from one of the other batteries ensuring no single point of failure.

BATTERY MEASUREMENTS

The total system height is: 1648.3mm, with a width of 723.5mm & a depth of 444.6 mm.

EASY MODULE REPLACEMENT

Easy module replacement with built-in module balancing.

AIR-COOLED

Each module has its own air cooling system for heat dissipation.

BATTERY HOT ADDING

Active battery synchronizing for both charge and discharge.

NO-CONNECTION STACKING

This easy, no-connection stacking design ensures a simple, fast, and safe commissioning of batteries.

ADVANCED THERMAL CONTROL

With a built-in DC inverter, the battery can cool itself down in high-temperature environments and heat itself in cold-temperature environments.

UP TO 60 UNITS IN PARALLEL

Add up to 60 units in parallel without a master/controller.
