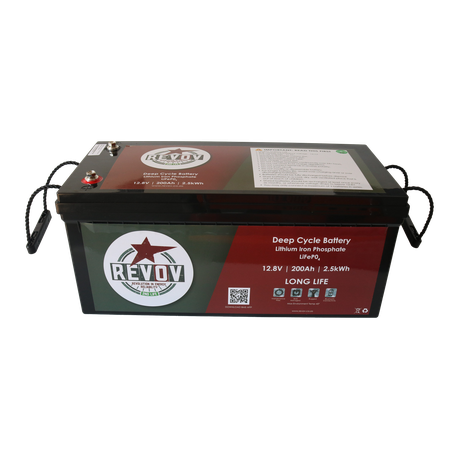

REVOV 12V 200AH Lithium Ion lithium battery/ 2.56KWH usable energy

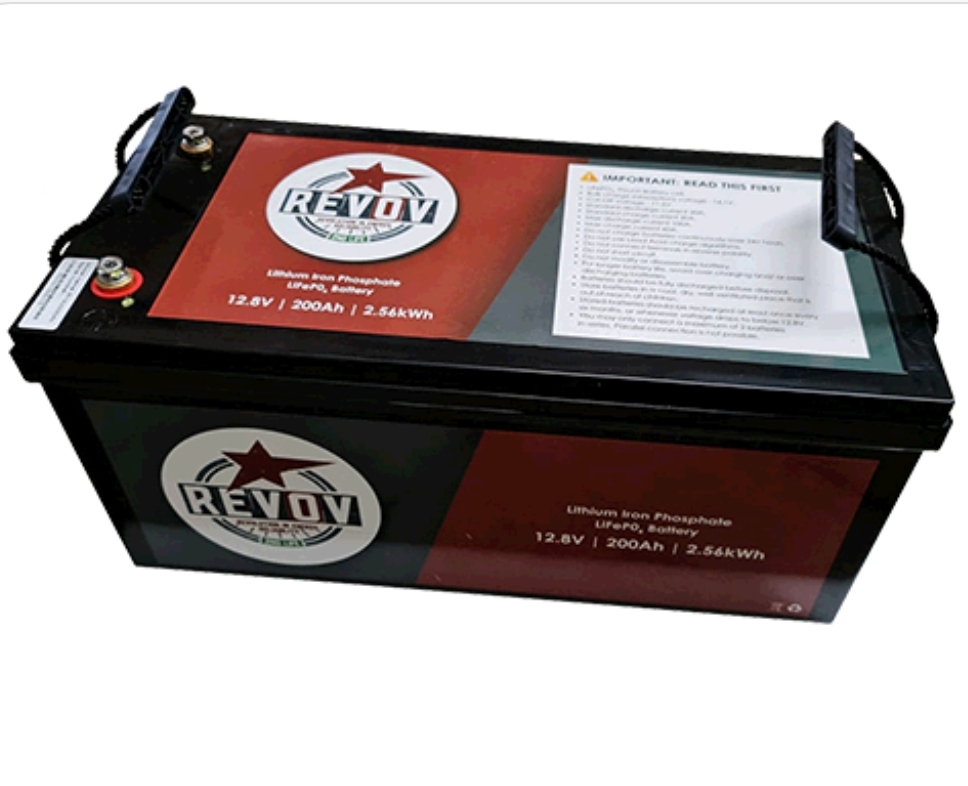

REVOV 12V 200AH Lithium Ion lithium battery/ 2.56KWH usable energy - Image 2

REVOV 12V 200AH Lithium Ion lithium battery/ 2.56KWH usable energy

Original price was: R10,079.00.Current price is: R8,323.00.

Contact seller direct to order.

2LiFe 4 cell 12.8v, 200Ah, 2.56 kWh Battery Built in BlueTooth BMS

REVOV’s 12V 200Ah 2.56kWh lithium iron battery is ideal for portable energy storage – and because it uses 2ndLiFe technology, it is highly cost-effective.

Our 12V 200Ah lithium ion battery includes an integrated battery management system and a durable ABS enclosure.

The battery uses a superior four-cell configuration, with advanced LiFePO4 chemistry. It is designed to withstand harsh conditions (including high temperatures) and offers long life span and high energy density.

REVOV 2nd LiFe batteries are repurposed after use in electric vehicles. This makes them less expensive than comparable alternatives. They are also environmentally responsible, reducing electronic waste and repurposing important materials.

Category: Tag:

Description

Product Description

Details:
The 12.8V 200 Ah battery is (LiFePO4) chemistry and has an integrated battery management system making it the perfect portable power solution.

Lithium Iron Phosphate battery technology has greater energy density and lifecycle, it is a stable chemistry that maintains a high thermal runaway, resulting in a long life at low costs.

Key Features:
• Ultra-safe Lithium Iron Phosphate (LiFePO4) technology.
• Integrated battery management System (BMS).
• Light weight & compact.
• Water & dust resistant (IP56).
• Highly durable ABS enclosure.
• Drop-in lead acid replacement (with LI consideration) for static storage.
• Internal BMS for self protecting and maintenance.
• The battery can be connected in series up to 24V.
• Under and over voltage protection.
• The Bluetooth app allows for the display of the battery’s Total Voltage, Remaining Voltage, Temperature and Time Left until fully Discharged.

Application:
• Camping Equipment companies.
• 4×4 enthusiasts.
• 24V Backup Systems.

Warranty:
REVOV Batteries (PTY) LTD: 3 years or 2 000 cycles. During normal use, the unit can be discharged safely to 90% of its rated capacity. Battery life is shortened if the unit is discharged beyond its rated capacity. The battery must be charged 100% on every cycle to ensure warranty.

Battery Specifications:
Nominal Capacity: 200Ah
Nominal Energy: 2560Wh
Nominal Voltage: 12.8V
End of Discharge Voltage: 11.5V
Standard Charge Voltage: 14.1±0.2V/
Float Charge Voltage:13.7V
Standard Charge Current: 40A
Operating Current: 0 – 100A
BMS peak Current: 150A,10Sec
Internal Resistance: 20mΩ
Size: L x Wh x H 500mm x 235mm x 220mm
Weight: 22kg
Ex-factory Capacity SOC: Approx. 50% SOC
Discharge Temperature :-20*C – 60*C
Charge Temperature (must be reduced at 0*C – 5*C): 5*C – 45*C
Recommended Storage Environment: 15 – 45oC @ 75% SOC
Cycle Storage: 1 FULL cycle within 6 months

Electrical Charateristics & Test Condition:
Nominal Capacity: 200Ah
Internal Impendance: 40mΩ
Short Circuit Protection under and over Voltage Protection: Auto Cutoff Load when Short Circuit
