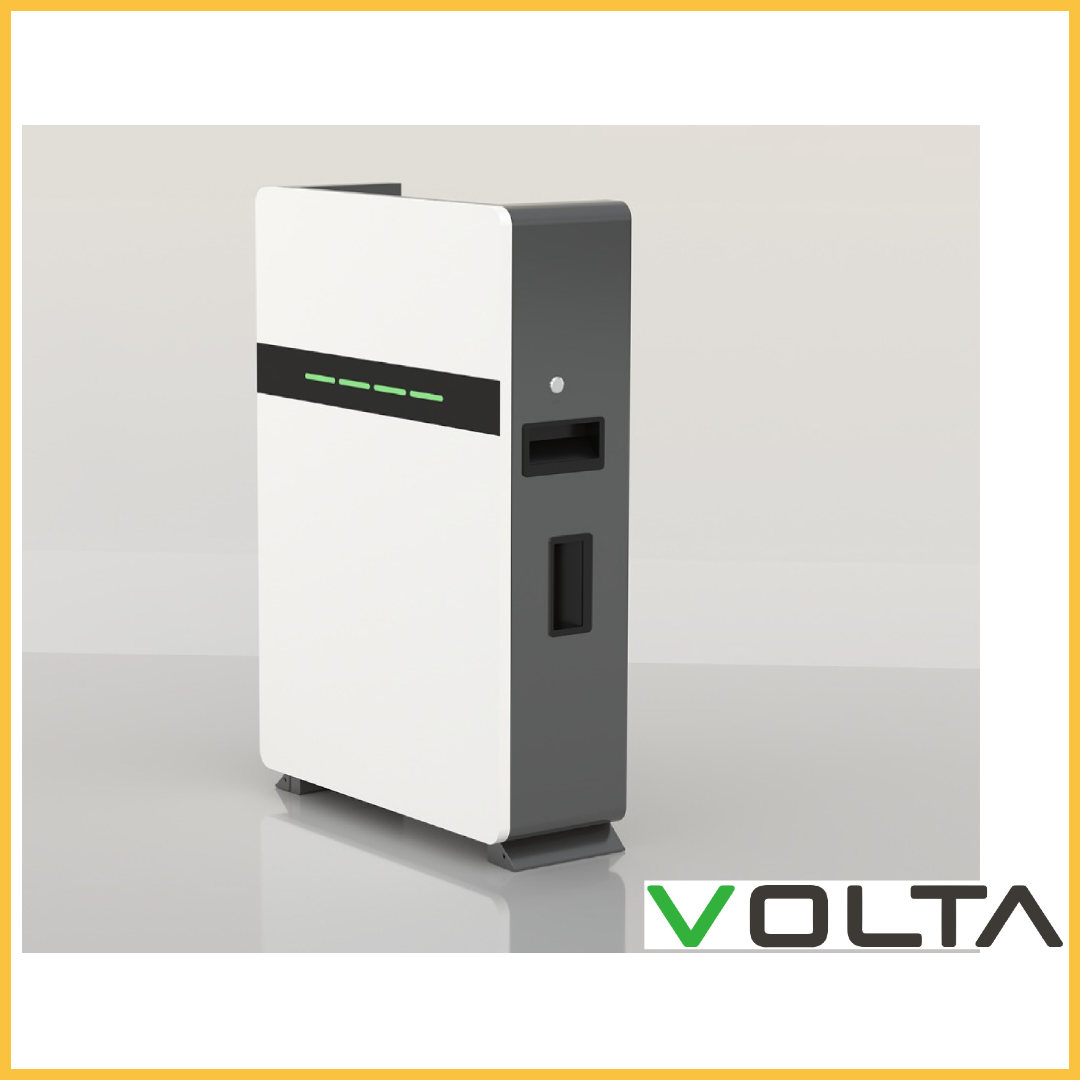

VOLTA STAGE 1 - 5.1 kwh Battery Wallmount and Floorstand

VOLTA STAGE 1 - 5.1 kwh Battery Wallmount and Floorstand - Image 2

VOLTA STAGE 1 – 5.1 kwh Battery Wallmount and Floorstand

Name: VOLTA STAGE 1 - 5.1 kwh Battery Wallmount and Floorstand
SKU: 1581
Availability: InStock

Original price was: R24,989.00.Current price is: R15,709.00.

Contact seller direct to order.

Features：
Two Mounting Methods：
1 Wall Mounted With Wall Bracket
2 Floor Standing With Detachable Floor
Compatible With Multiple Inverter Brands

Description

General Data
• Battery Type: Lithium-Ion
• Product Model: VOLTA STAGE 1
• Nominal Energy: 5.12KWH
• Nominal Voltage: 51.2VDC
• Nominal Capacity: 100AH
• Cell Type: LFP
• 1C/1C Continual Charge & Discharge
• Standard Charge Voltage: 56VDC
• Maximum Discharge Current: 100A
• Discharge Cut-Off Voltage: 44.8VDC
• Maximum Parallel Units: 8
• Design Life: 6000 Cycles @ 80% DOD @ 25°C
• Installation Type: Wall Mount & Floor Stand

Environment Limit
• Ingress Protection: IP20
• Charge Temperature Range: 0°C to +65°C
• Discharge Temperature Range: -20°C to +65°C
• Communication: RS485, RS232, CAN
• Safety Rating: MSDS / UN38.3

Category: Built Units Tag: VOLTA STAGE 1 - 5.1 kwh Battery Wallmount and Floorstand

Description

Description

Parameters
Nominal Voltage
Nominal Capacity
Cell Type
Standard Charge Voltage
Max Discharge Current
Parallels Function
Communication Interface
Cycle Life *
Charge temperature range
Discharge temperature range
Certification
lnstallation method Wall Mounted/Floor Standing
0~65℃
-20~65℃
Discharge Cut-Off Voltage
Support 8 Units In Parallels
RS485、RS232、CAN (Optional)
≥6000 Cycles (80%DOD)
Dimensions
Weight
VOLTA STAGE 1
5KWH
100Ah
100A
480*600*150mm
58Kg
51.2V
LFP
56V
44.8V
