Description

This battery module consists of Lithium Ion phosphate rechargeable batteries with 10.65kWh capacity rated at 51.2V with a built-in battery management system.

Using Sunsynk batteries with your new Sunsynk inverter extends the inverter warranty to 10 years.

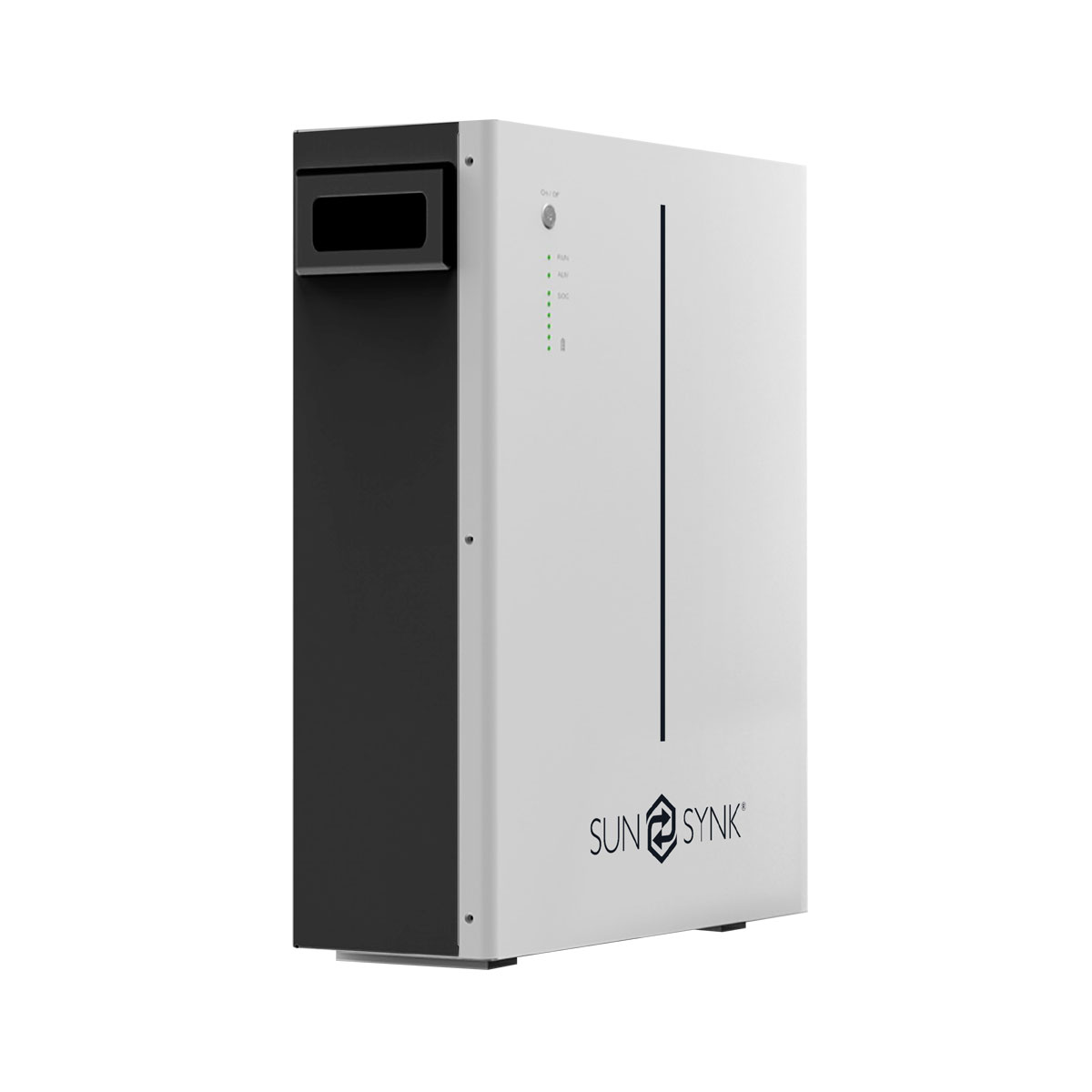

SUNSYNK MAX BATTERY

• CELL TYPE: LiFePO4 Lithium Iron Phosphate
• CAPACITY: 10.65 kWh / 208AH
• NOMINAL VOLTAGE: 51.2V
• NOMINAL CHARGE/DISCHARGE CURRENT: 100A
• NOMINAL CHARGE/DISCHARGE POWER: 5000W
• MAX CHARGE/DISCHARGE CURRENT: 200A
• MAX CHARGE/DISCHARGE POWER: 10000W
• DIMENSIONS: 836MM x 550MM x 160MM
• WEIGHT: 90KG
• CYCLE LIFE: 6000 CYCLES @ 80% DOD
• FLOOR OR WALL MOUNTED
• UP TO 8 BATTERIES PARALLEL
• ADDITIONAL FEATURES

  Sunsynk have produced a perfect storage solution. The module consists of Lithium Iron phosphate rechargeable batteries with 10.65kWh capacity rated at 51.2V 208Ah with a built-in battery management system.

  The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25°C).
  Lithium Iron phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.
