CONTACT SELLER TO PLACE ORDER.

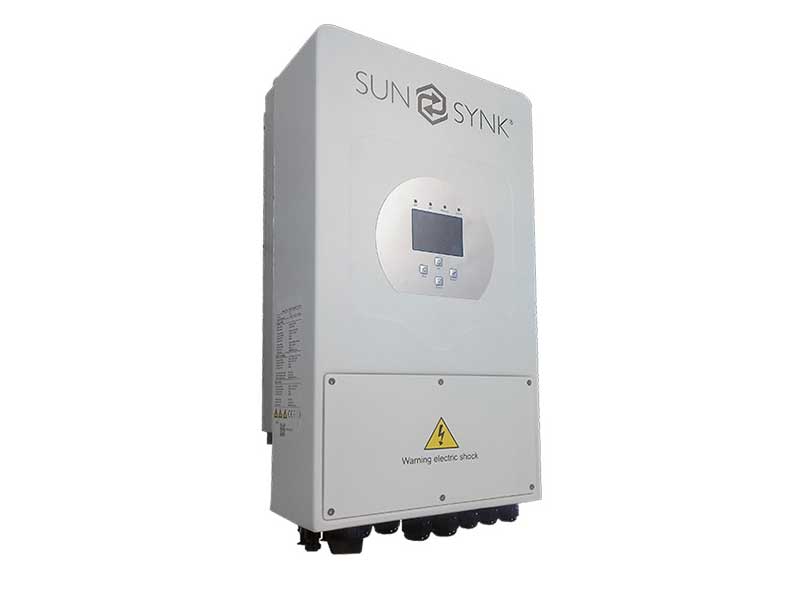

Improve self-consumption ratio up to 80%, reducing your electricity bill.DC/AC ratio up to 1.3, completely suitable for double-side PV modular.Two MPPT design, Max. efficiency of 97.6%.

User-friendly.

LCD Touch screen and buttons, easy operation.Compatible with lithium-ion battery and lead acid battery.Web browser and mobile App monitoring supported.

Reliable.

PV lighting protection, Anti-islanding protection, Leakage current protection etc.Support store energy from DG when needed, ensure the system working within 7*24H.IP65 protection degree, adapt to indoor and outdoor using.Automatically switch from on-grid to off-grid mode within 5ms.Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

Programmable charging and discharging schedule.Both wind turbines and solar panels can be connected as DC input power.Max. 16 units can be paralleled for higher system power.Retrofitting of existing solar system to energy storage system.

Battery Input Data

Battery Type: Lead-acid or Li-lonBattery Voltage Range (V): 40-60VMax. Charging Current (A): 190AMax. Discharging Current (A): 190ACharging curve: 3 Stages/EqualizationExternal Temperature Sensor: OptionalCharging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W): 10400W.PV input Voltage (V): 370V (100V-500V).MPPT Range (V): 125-425V.Start-up Voltage (V): 150V.PV Input Current (A): 22A + 22A.No. of MPPT Trackers: 2No. of Strings Per MPPT Tracker: 2+2.

AC Output Data

Rated AC Output and UPS Power (W): 8000WMax AC Output Power (W): 8800WPeak Power(off-grid): 2 times of rated power, 10 S.AC Output Rated Current(A): 33.4A/35AMax.AC Output Current(A): 36.7A/38.5A.Max Continuous AC Pass-through(A): 50A.Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)Grid Type: THD<3%(Linear load<1.5%).Current Harmonic Distortion: THD<3% (Linear load<1.5%). Efficiency Max. Efficiency: 97.60%Euro Efficiency: 97.00%MPPT Efficiency: 99.90% Protection PV Arc Fault Detection: Integrated (Except European Type)PV Input Lightning Protection: IntegratedAnti -islanding Protection: IntegratedPV String Input Reverse Polarity Protection: IntegratedInsulation Resistor Detection: IntegratedResidual Current Monitoring Unit: IntegratedOutput over Current Protection: IntegratedOutput Shorted Protection: IntegratedOutput over Voltage Protection: Integrated Certifications and Standards Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727Safety Regulation: IEC62109-1, IEC62109-2EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B General Data Operating Temperature Range ( C ): -25—60 C , >45 C DeratingCooling: FanNoise (dB): <30Communication with BMS: RS485; CANWeight (kg): 32Size (mm): 680 X 4200 X 233mmProtection Degree: IP65Installation Style: Wall-mountedWarranty: 5 years

Please Note: Delivery Excluded.
