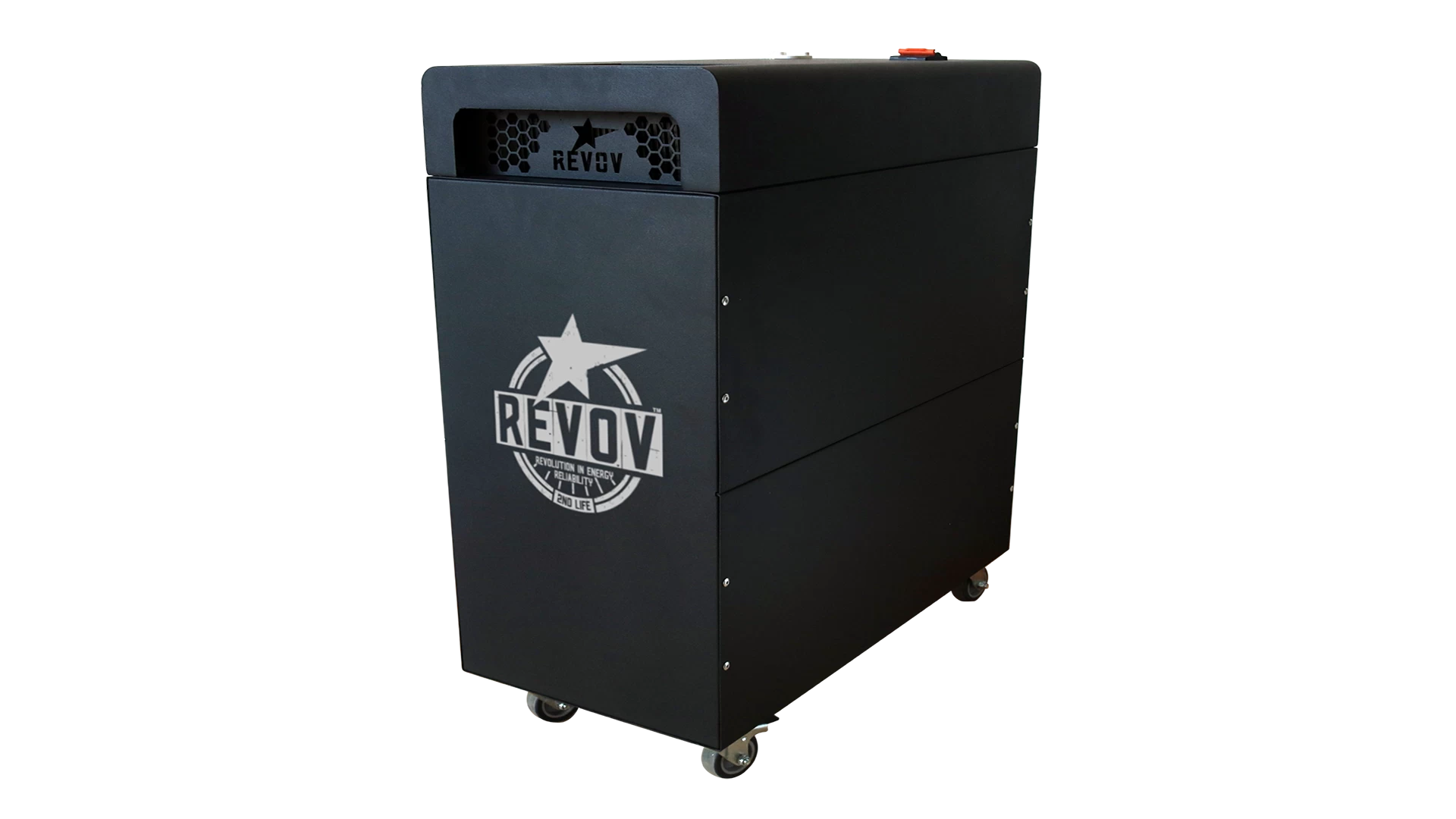

Revov Atom Inverter Kit - 5.12kWh / 2000W / 230VAC / Pure Sine Wave Trolley System
Revov Atom Inverter Kit - 5.12kWh / 2000W / 230VAC / Pure Sine Wave Trolley System - Image 2

Revov Atom Inverter Kit – 5.12kWh / 2000W / 230VAC / Pure Sine Wave Trolley System

Original price was: R25,597.00.Current price is: R20,680.00.

KEY FEATURES

The REVOV ATOM is a 2kW pre-configured UPS with the immediate backup transition from grid power to battery power
• Available in the storage size of 5.12kWh, 2 x 12.8V 200Ah batteries

• No maintenance or fuel required

• Output plug on the unit for use with an extension cord or directly connected device

• Bluetooth Smartphone Application display of battery performance and state

SPECIFICATIONS

Output
Transfer Time: 20 ms typical
Waveform: Pure Sine Wave
Power Output: 2000W
Max Peak Power Output: 230 VAC

Battery
Battery Voltage: 25.6VDC
Boost Voltage: 28.8VDC ± 0.3VDC
Floating Charge Voltage: 27.4VDC ± 0.3VDC
Max Charge Current (DC): 70A
Full Energy Capacity: 5.12kWh
Useable Energy Capacity: 4.096kWh
Recommended Charge Current (DC): 50A
Available Depth of Discharge: 80%
Maintenance Charge the battery every 6 months when not in use.

Physical
Dimension (D*W*H) (Metal) 550mm x 270mm x 596mm

WARRANTY

REVOV Batteries (PTY) LTD: 3 years or 2 000 cycles. 1 year warranty for inverter used in the REVOV ATOM.
DOD When used properly every day the REVOV ATOM can be safely discharged to 80% of its rated
200Ah capacity. Battery life is shortened if it is discharged beyond its rated Ah capacity.

Category: Tag:

Description

Please Contact Seller Direct To Order.

Description

Revov Atom 2KW – 5.12KW Storage Trolley Inverter System

The REVOV ATOM is a compact, fully integrated all-in-one backup system with pre-programmed
batteries, pre-calibrated Battery Management System’s (BMS) and a 2kW inverter.

The entire unit contains all the necessary wiring and correct fusing, as well as a kettle cord input
and standard South African 3-pin socket with USB ports to connect the output devices to the
Pure Sine Wave AC Output.

REVOV 2nd LiFe batteries are energy storage Lithium Iron Phosphate batteries that use superior
16 cell configuration, made up of repurposed automotive grade cells, which are designed to
withstand harsh conditions, extreme temperatures and have a high energy density.

REVOV 2nd LiFe batteries are environmentally responsible, reducing electronic waste and
repurposing important materials.

Note: The unit is designed to be used as a mobile UPS system, and thus is not designed to power devices, through the
installed home electric wiring.
