Description:

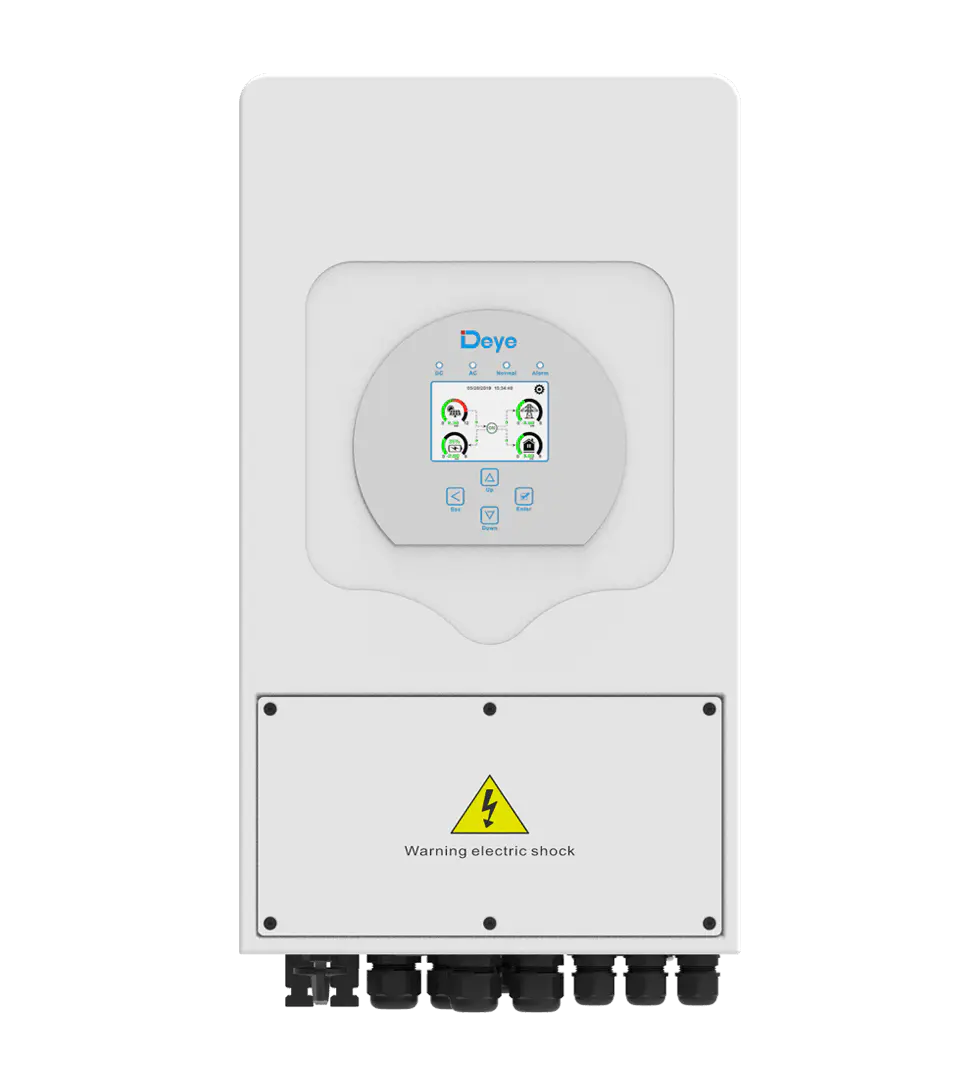

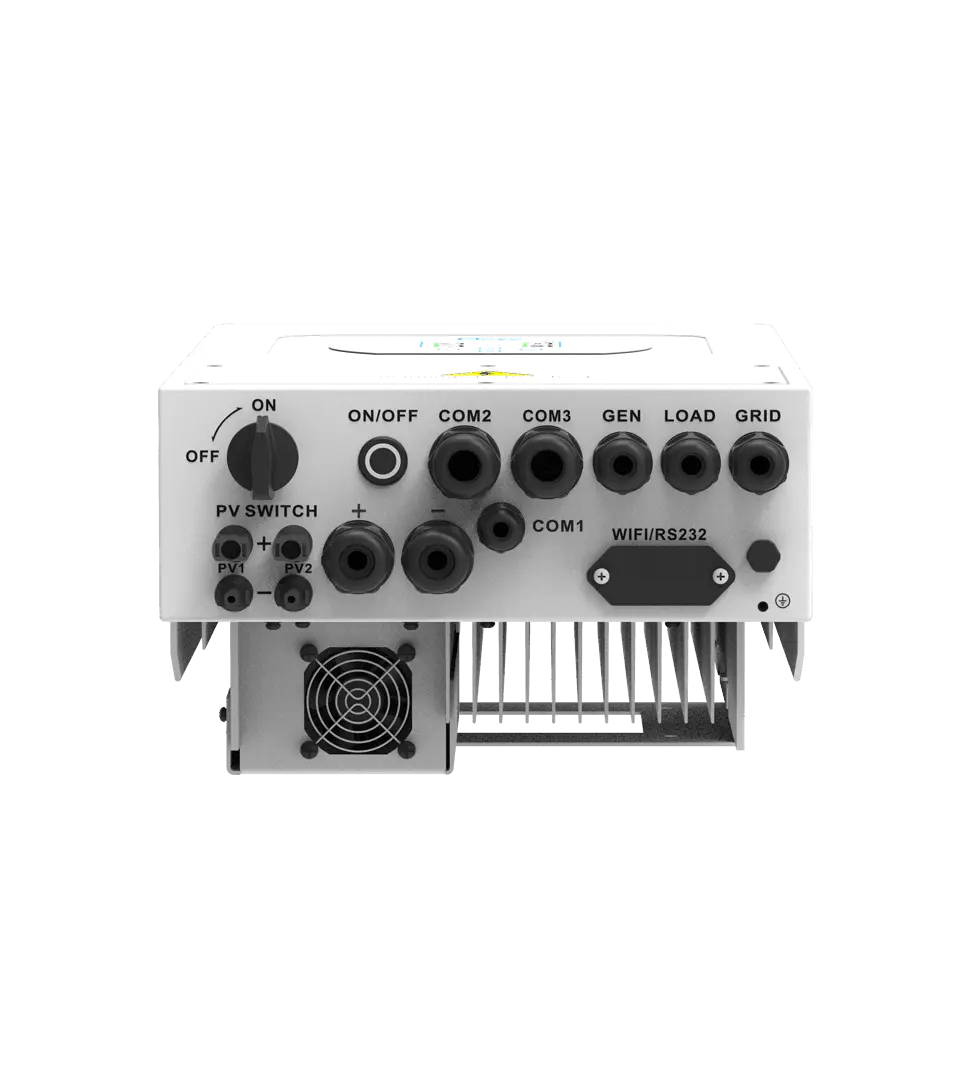

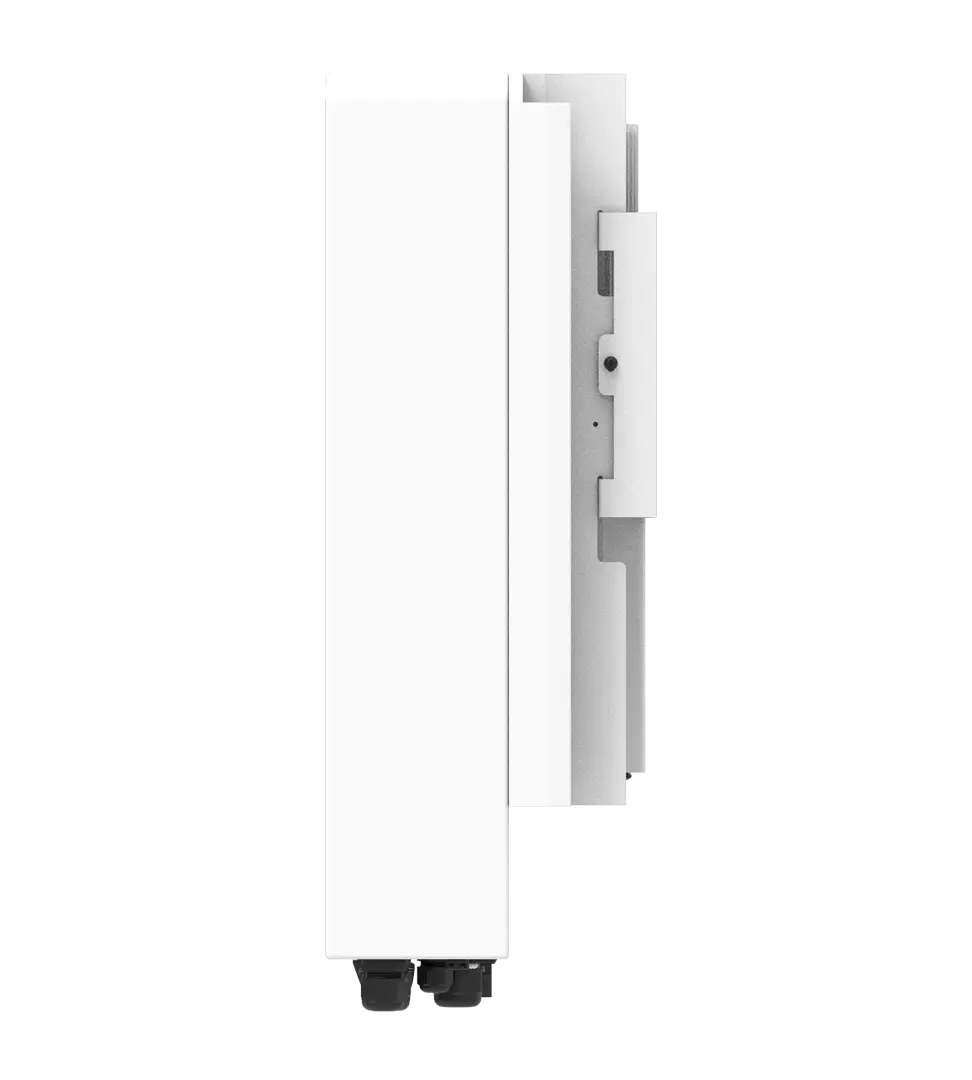

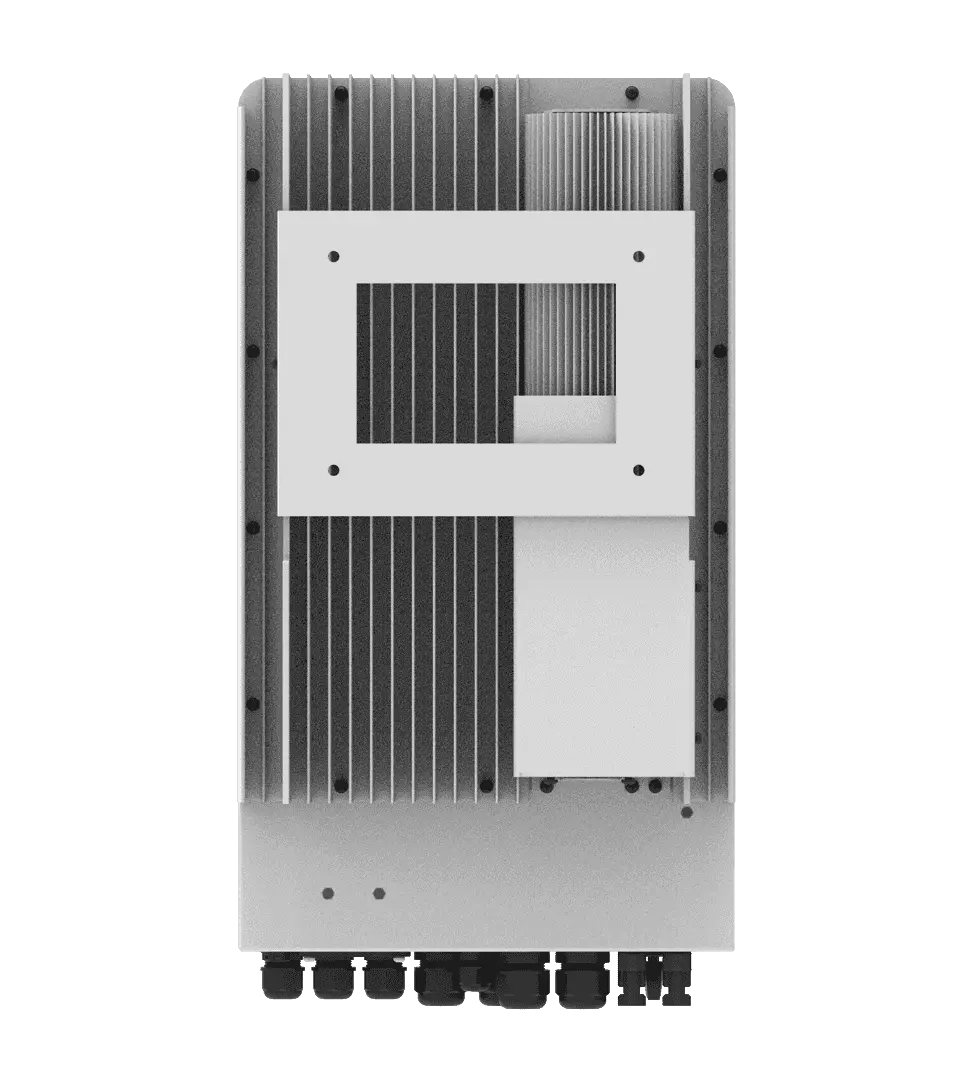

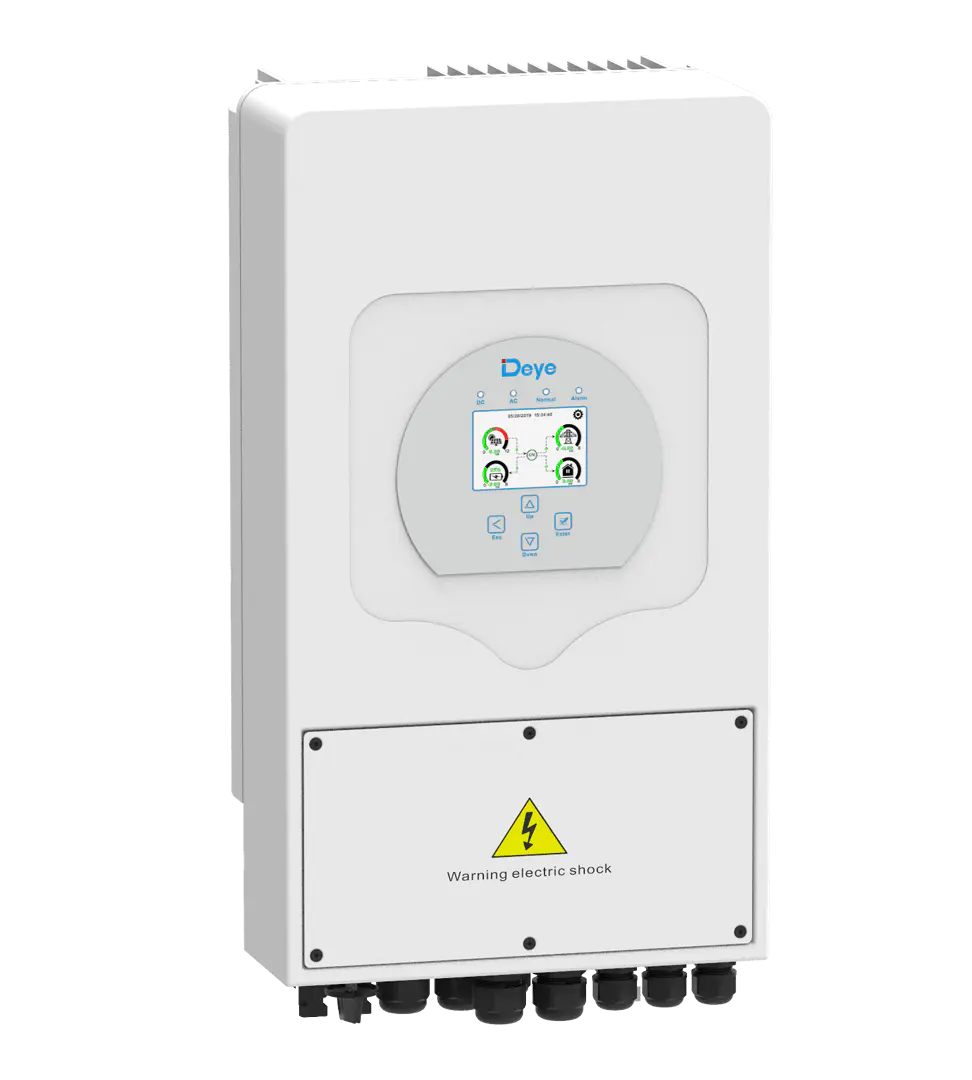

This inverter is an on and off-grid inverter with many luxurious and safety features.

Features:

Colour touch screen LCD displayIP65 ratedDual MPPTHigh PV input voltage range5-Year warrantyLow noiseWifi monitoring

AC Specifications:

Rated power: 5000 WMaximum output power: 5500 WPeak power (off-grid): 2x rated power for 10 sAC output rated current: 21.7 AMaximum AC output current: 25 AMaximum AC continuous passthrough: 35 APower factor: 0.8 leading to 0.8 laggingOutput frequency: 50 / 60 HzOutput Voltage: 220/230/240 Vac single phaseCurrent harmonic distortion: THD < 3 % (Linear load < 1.5 %)Maximum efficiency: 97.6 % PV Specifications: Maximum PV input power: 6500 WPV input voltage range : 100 V to 500 V (ideal 370 V)MPPT voltage range: 125 V to 425 VFull load DC voltage range: 240 V to 425 VStart-up voltage: 150 VNumber of MPPTs: 2Number of PV strings per MPPT tracker: 1Maximum PV input current : 13 A + 13 A Battery Specifications: Battery voltage range: 40 V to 60 VBattery type supported: Lead-acid or Lithium-ion (LiFePO4 / NMC)Maximum charging current: 120 AMaximum discharge current capability: 120 ALead-acid battery charge type: 3-stageExternal temperature sensor: OptionalBMS communication: Yes. Communication with Lithium batteries are recommended. Consult battery supplier for compatibility. Safety Features: PV input lightning protectionAnti-islanding protectionPV string input reverse polarity protectionInsulation resistor detectionResidual current monitoring unitOutput over current protectionOutput shorted protectionOutput over-voltage protectionDC surge protection: Type IIAC surge protection: Type II General Specifications: Operating temperature range: -25 °C to 60 °C, > 45 °C DeratingCooling: Smart coolingNoise: < 30 dBCommunication with BMS: RS485 & CANWeight: 20.5 kgSize: 330 x 580 x 232 mmIngress protection: IP65Warranty: 5 years

Expansion: More Inverters

Frequency droop controlMaximum 16pcs parallelSingle-phase: Yes
Three-phase: One inverter per phase

Installation:

A competent, qualified professional installer is required for the installation of all electrical systems.

What is in the box:

Wifi dongleUser manualNetwork cable, intended for battery communicationExternal lead-acid battery temperature sensor2x MC4 connector sets
4x Expansion bolts

Please Note: Delivery Excluded.
