Description
DEYE 12000BTU SOLAR AIRCON FEATURES:

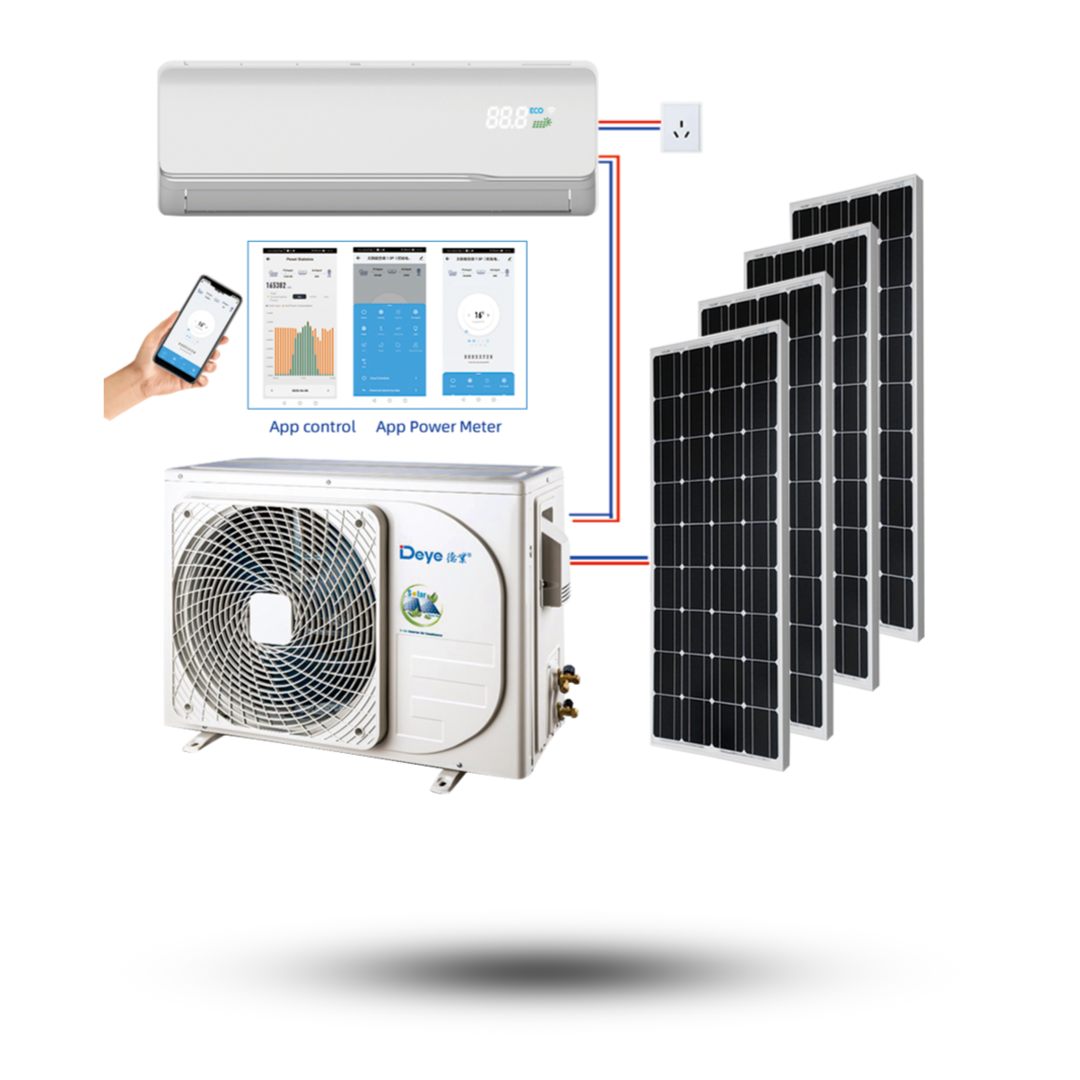

- Plug and play installation – solar panels connect directly to MC4 solar terminals
- No solar grid connection for installation and no utility company authority is required
- Limit AC power from 0-300W
- No Inverter, battery, or charger controller needed
- Wide range operating temperatures, between -10 ̊C to +58 C̊
- Max Efficiency- DC-driven
- Auto Balance – AC/DC auto balance
- Uses eco-friendly R410 refrigerant gas – non-flammable! Compared with widely used flammable R32 gas.
TECHNICAL SPECIFICATIONS:
- AC Power Supply: 1Ph 208V-240V/50-60HZ
- DC Power (PV in Series) Supply: 80-380V
- Advised Solar Panel: (3-4)*330W in series
- Rated Cooling Power input: 940(190-1270) W
- Rated Heating Power input: 1170(190-1700) W
- Dehumidification capacity: 1.3 L/h
- Compressor Model: WHP04200
- Indoor fan motor Model: BLDC-15W
- Indoor noise level (Turbo): 42.5 dB(A)
- Outdoor fan motor Model: BLDC-40W
- Outdoor noise level (Turbo): ?52 dB(A)
- Refrigerant type: R410A
- Max Design pressure: 4.3/1.5 MPa
Streamline your setup with a full DC-driven system. The Deye Solar Air Conditioner requires no inverter, no battery, and no charge controller, simplifying installation and maintenance.
