CONTACT SELLER TO PLACE ORDER.

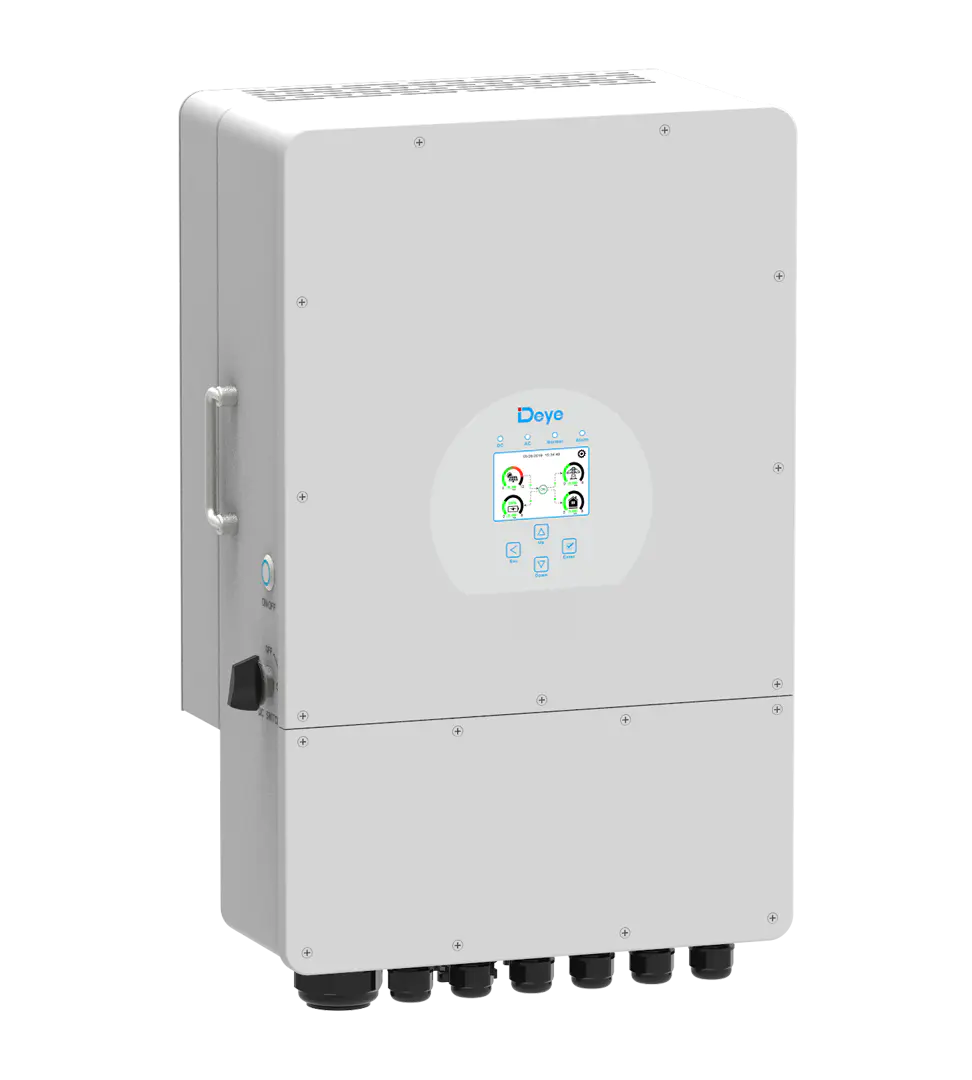

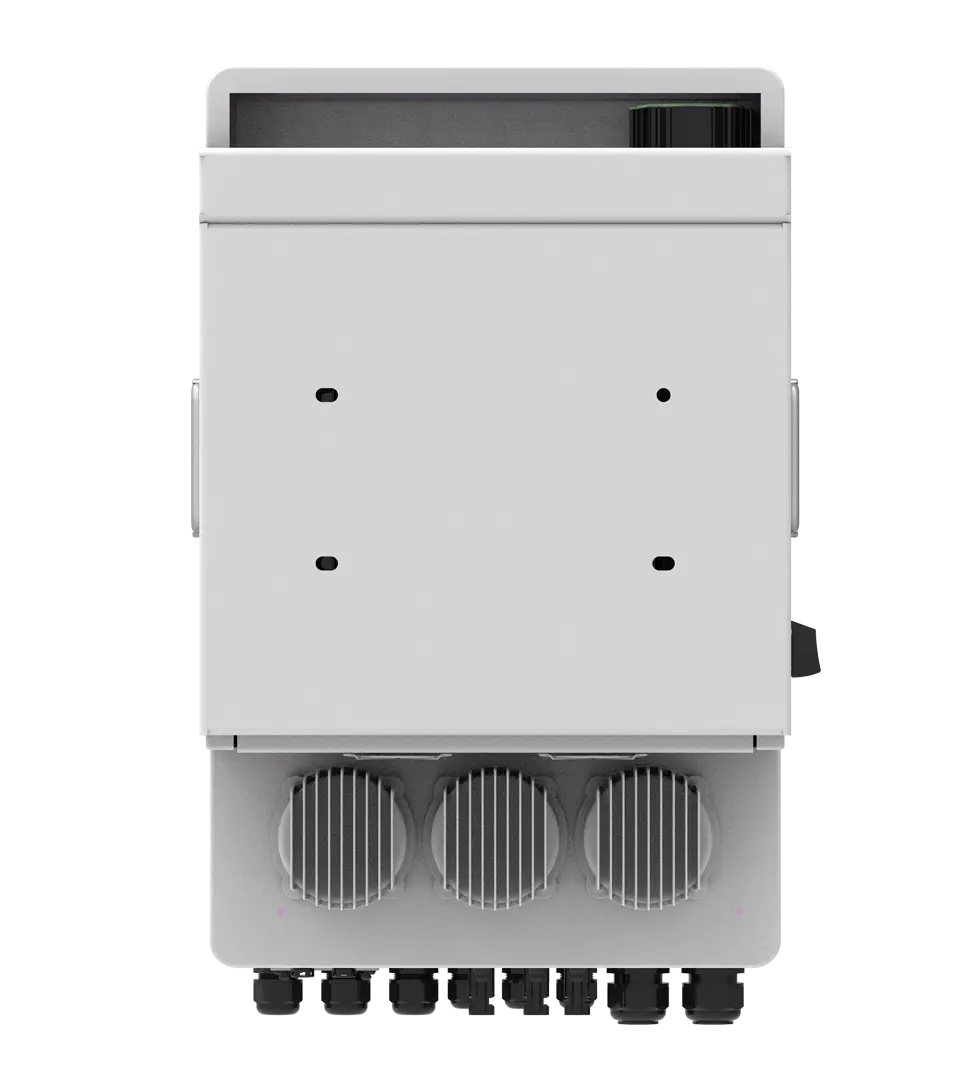

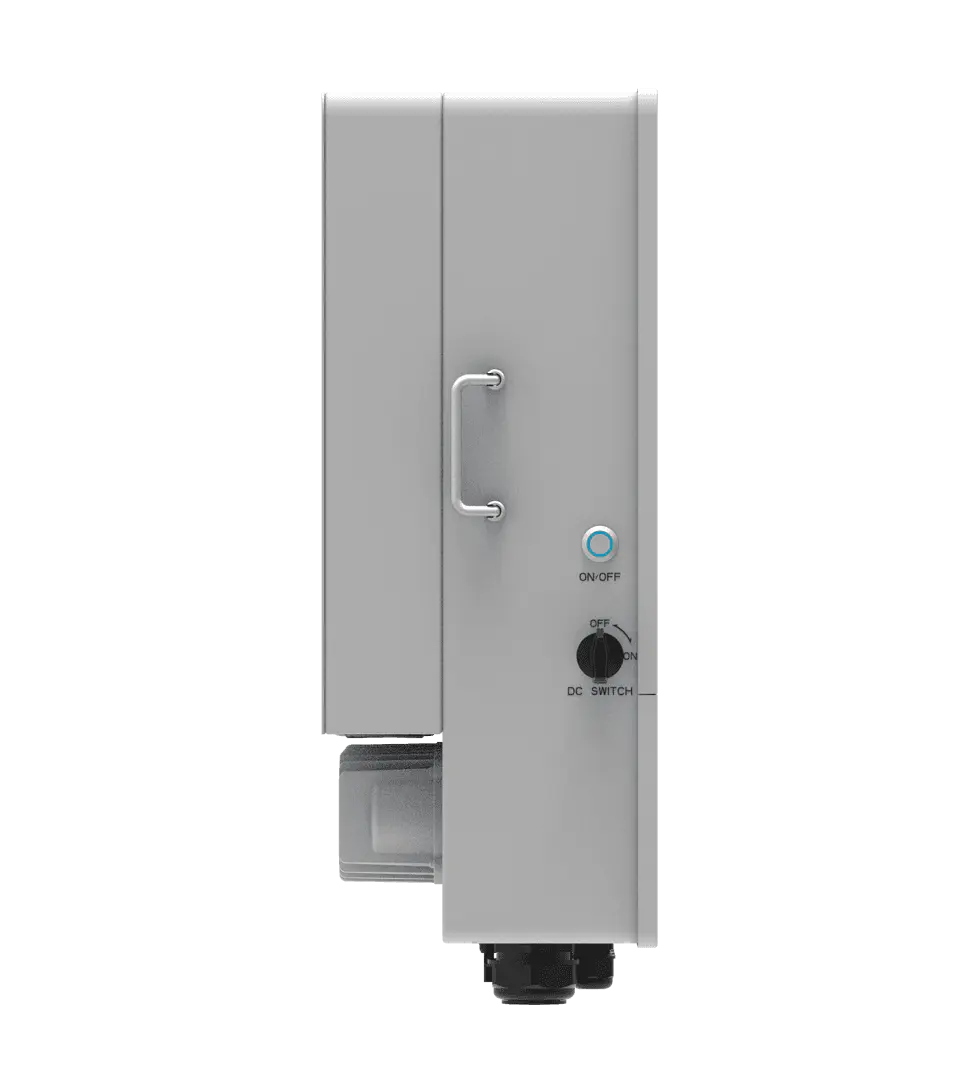

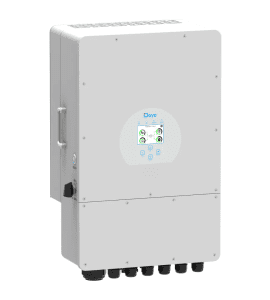

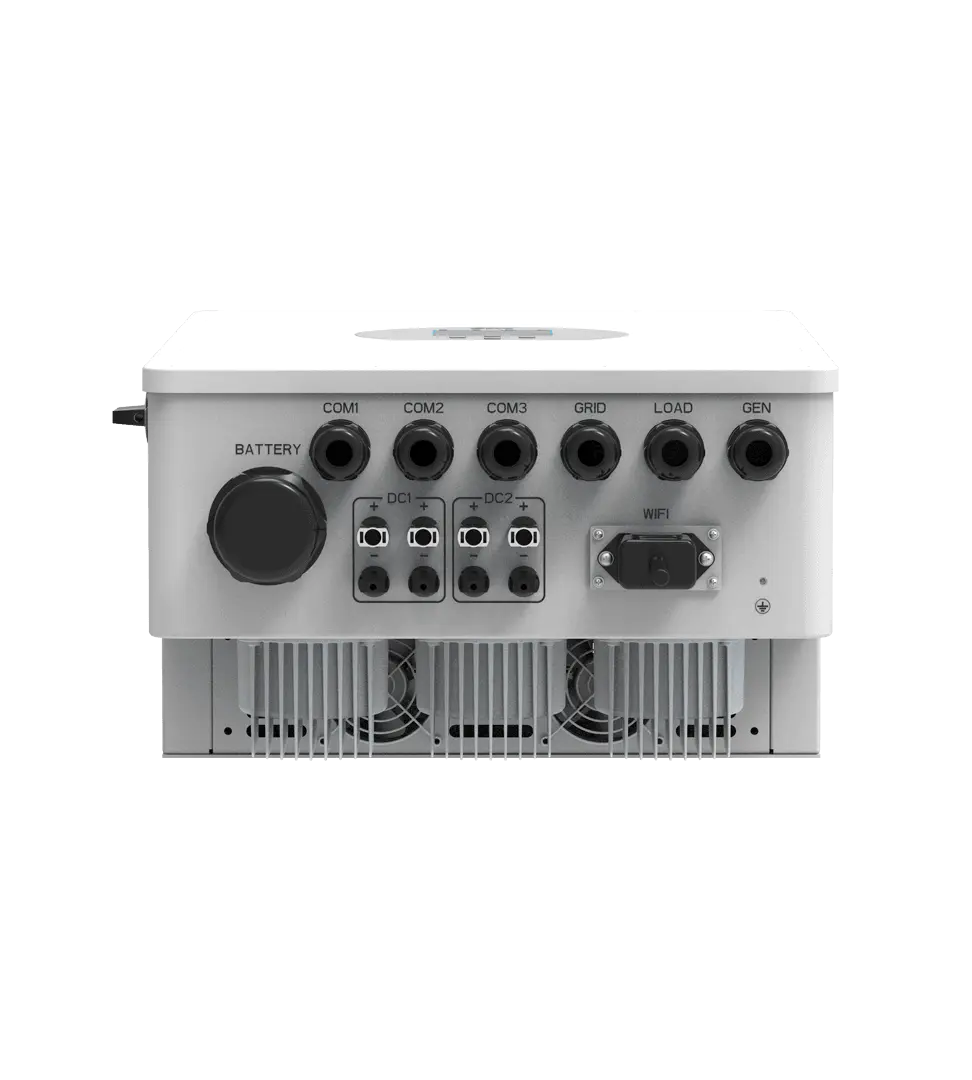

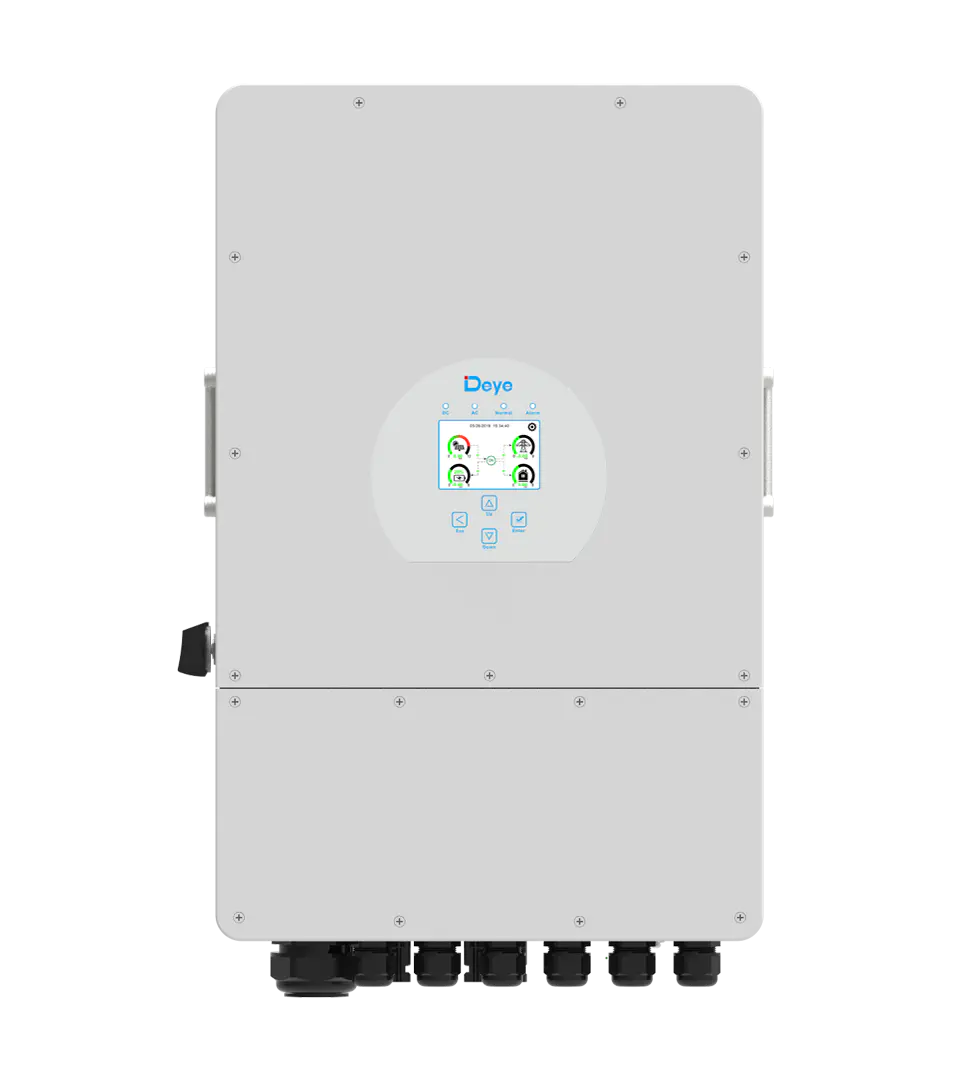

This inverter is a three-phase on and off-grid inverter with many luxurious and safety featuresFeatures:

Colour touch screen LCD displayIP65 ratedDual MPPT100% unbalanced output, each phase max. output up to 50% rated powerHigh PV input voltage range5-Year warrantyLow noiseModel SUN-12K-SG04LP3

AC Specifications:

Rated power: 12 000 WMaximum output power: 13 200 WPeak power (off-grid): 2x rated power for 10 sAC output rated current: 18 AMaximum AC output current: 27 AMaximum AC continuous passthrough: 50 AOutput frequency: 50 / 60 HzOutput Voltage: 230 Vac per single phaseCurrent harmonic distortion: THD < 3 % (Linear load < 1.5 %)Maximum efficiency: 97.6 % PV Specifications: Maximum PV input power: 15 600 WPV input voltage range: 150 V to 800 V (ideal 550 V)MPPT voltage range: 200 V to 650 VStart up voltage: 160 VNumber of MPPTs: 2Number of PV strings per MPPT tracker: 2 + 1Maximum PV input current: 26 A + 13 A Battery Specifications: Battery voltage range: 40 V to 60 VBattery type supported: Lead-acid or Lithium-ion (LiFePO4 / NMC)Maximum charging current: 240 AMaximum discharge current capability: 240 ALead-acid battery charge type: 3-stageExternal temperature sensor: OptionalBMS communication: Yes. Communication with Lithium batteries are recommended. Consult battery supplier for compatibility. Safety Features: PV input lightning protectionAnti-islanding protectionPV string input reverse polarity protectionInsulation resistor detectionResidual current monitoring unitOutput over current protectionOutput shorted protectionOutput over-voltage protectionDC surge protection: Type IIAC surge protection: Type II General Specifications: Operating temperature range: -25 °C to 60 °C, > 45 °C DeratingCooling: Smart coolingNoise: < 30 dBCommunication with BMS: RS485 & CANWeight: 36.8 kgSize: 422 x 658 x 281 mmIngress protection: IP65Warranty: 5 years

Expansion:

Frequency droop controlMaximum 16pcs parallel

Installation:

A competent, qualified professional installer is required for the installation of all electrical systems.

What is in the box:

Wifi dongleUser manualNetwork cable, intended for battery communicationExternal lead-acid battery temperature sensor3x CTs3x MC4 connector sets
4x Expansion boltsMounting plate

Please Note: Delivery Excluded.
