Description
DOWNLOAD MANUAL

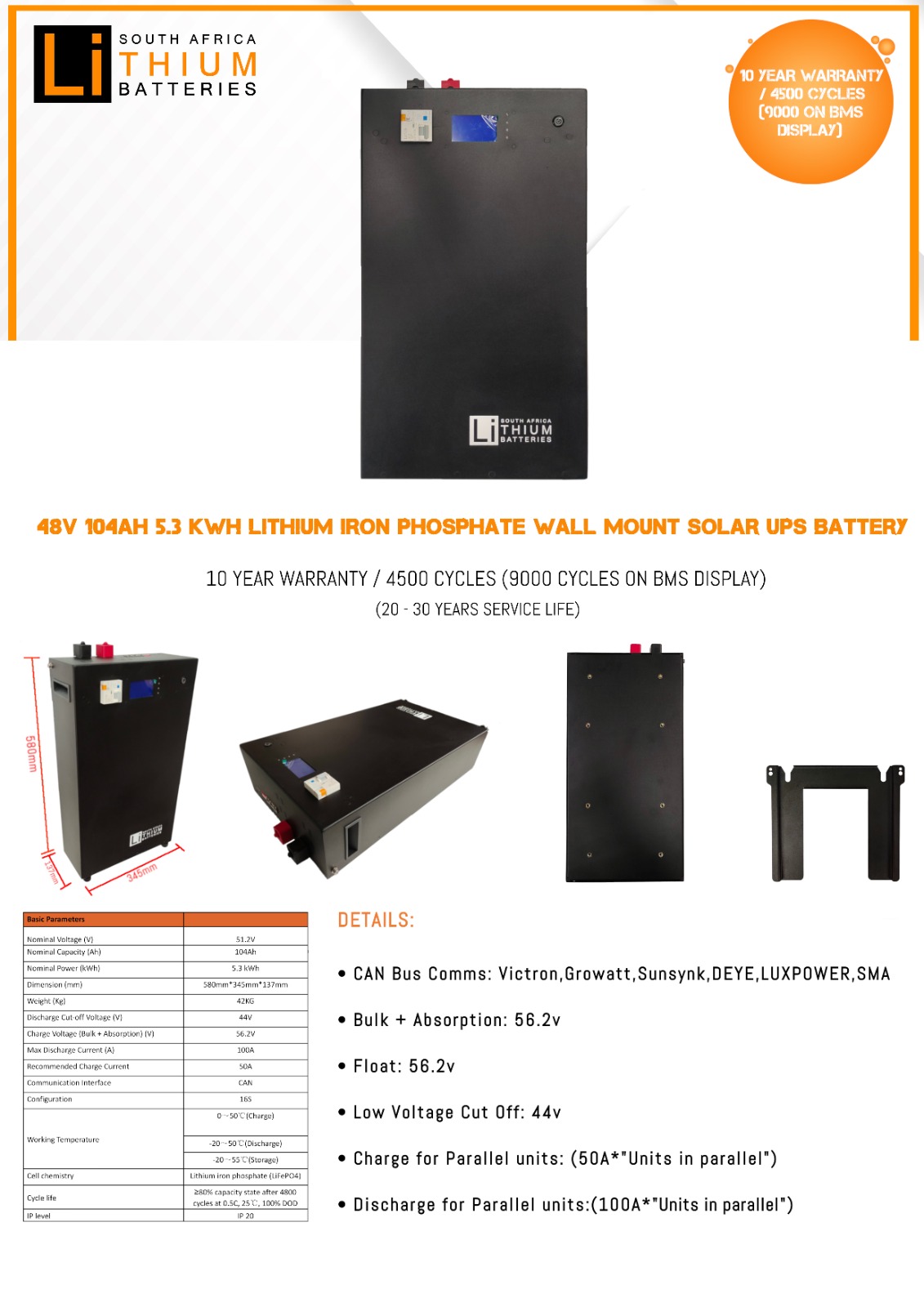

5.2KWH Capacity @ 40A load
4500 cycles (9000 Cycles on BMS display) Warranty
10Â Year Warranty(20-30 years service life)
Details:
CAN Bus Comms: Victron,Growatt,Sunsync,DEYE
Bulk + Absorption: 56vÂ
Float :Â 54v
Low Voltage Cut Off:Â 44v
Maximum continuous Charge/Discharge For Single Unit:Â 100AÂ (Recommended 50A)
Charge for Parallel units: (100A*”Units In parallel”) / 2
Discharge for Parallel units:Â 100A * “Units in parallel
Display Definitions:Â
OV – Warn: high pressure alarm
OV – Prot: over-voltage protection
UV – Warn: low pressure alarm
UV – Prot: under-voltage protection
OT-Warn:High temperature alarm
OT-Prot:Over temperature protection
UT – Warn: low temperature alarm
UT – Prot: low temperature
OC – Warn: over-current alarm
OC – Prot: over-current protection
CAPA – Warn: remaining capacity of the alarm
OFF – USE: failure alarm
SCP:Short circuit protection
